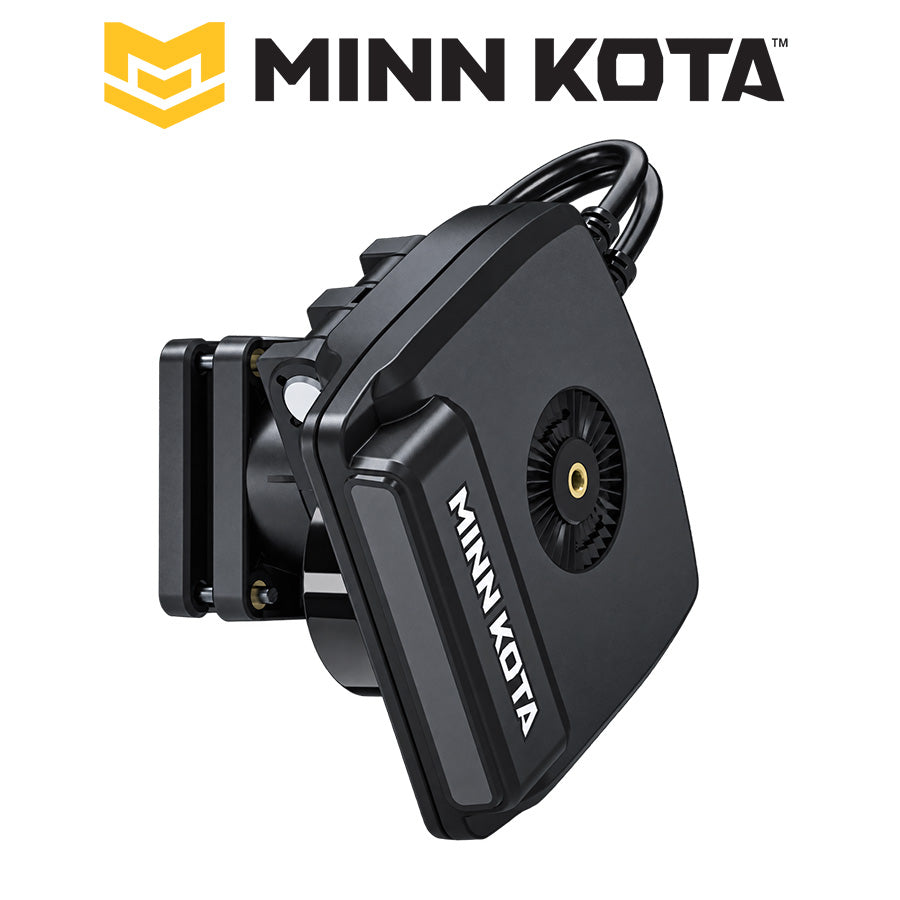

Minn Kota LIVE Sonar Transducer – Stunning Real-Time Sonar Without an External Blackbox

With the Minn Kota LIVE Sonar, modern predator fishing reaches a whole new dimension of visual lure control and strike detection. As the logical evolution of the legendary Humminbird MEGA Live platform, this high-end real-time transducer delivers crystal-clear underwater images directly to your display – absolutely live and without any lag. You can watch in real time how predators such as zander, pike, bass, or catfish react to your lure presentation, hesitantly follow, turn away, or strike aggressively in a fraction of a second. The guesswork about what is really happening beneath the water's surface is finally over.

A major advantage of the Minn Kota LIVE Sonar is its clever system architecture. While conventional live systems on the market often require a bulky, power-hungry blackbox inside the boat, the Minn Kota LIVE Sonar is operated completely without an external signal box. The transducer simply connects directly to your compatible multifunction display via the included Ethernet cable. Thanks to state-of-the-art transducer technology and powerful quad-core processors, signal processing takes place entirely within the system, saving valuable space, minimizing cable clutter on board, and preserving your boat battery.

Full Device Compatibility Across Two Generations

A major plus of the Minn Kota LIVE Sonar is its straightforward integration into existing and new boat systems. The transducer is compatible out of the box with the new models of the Minn Kota X-Series (X7, X9, X10, X12, X16) as well as the large-console flagship models of the Minn Kota A-Series (A13, A16, A19). At the same time, the system ensures maximum investment security for all boat owners with established Humminbird installations: It can be operated seamlessly with devices from the Humminbird APEX, Humminbird XPLORE as well as Humminbird SOLIX G3. You do not need an expensive blackbox or intermediate modules for any of these models – simply plugging it into the Ethernet port is enough.

Three Viewing Modes for Every Possible Fishing Situation

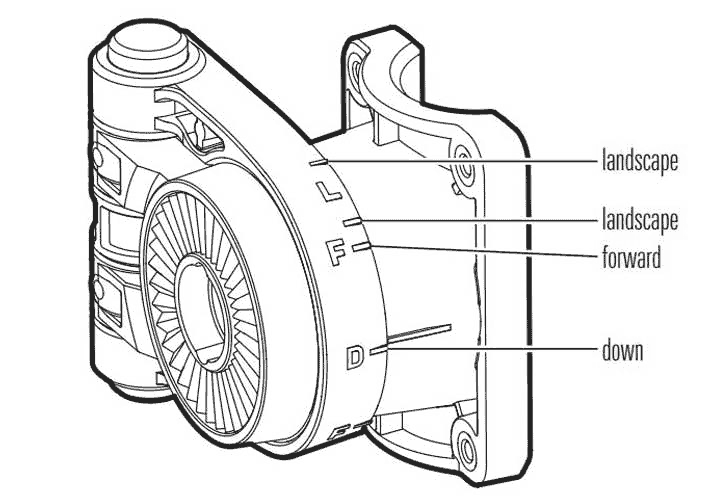

The Minn Kota LIVE Sonar adapts to your preferred fishing methods in just a few steps. Using the adjustable mount, you can switch between three specialized operating modes without tools to perfectly analyze fish behavior.

In Forward Mode, you can look far ahead of your boat or transducer pole. This mode is the ultimate weapon for precisely casting baitfish schools, weed edges, and free-standing predators in shallow or mid-water. You can cast your lure with pinpoint accuracy, watch it sink live, and guide it visually to the predator's mouth with millimeter precision.

In Down Mode, the transducer cone focuses on the area directly below the boat down to great depths. This mode is tailor-made for active vertical jigging, pelagic fishing in open water, or tapping for catfish. You can see your lead, lure, and rising fish with a clarity that makes even the finest fin movements visible.

In Landscape Mode, you orient the transducer horizontally to get a panoramic top-down view of the shallow water around the boat. This mode is perfect for scouting underwater plateaus, lily pad fields, or sunken structures, as it gives you a bird's-eye view of fish and obstacles in the immediate vicinity.

Optimized Target Separation and Real-Time Image Smoothing

Thanks to advanced signal algorithms and ultra-high frequency resolution, the Minn Kota LIVE Sonar minimizes annoying image noise and suspended-matter clutter. Even small soft baits, light jigs, or natural baits are displayed as clear, sharp echoes, while the water bottom remains precisely defined. Target separation is so sensitive that you can distinguish fish that are only a few centimeters above a rocky bottom or close together in a school.

Through seamless integration into the One-Boat Network, the system harmonizes perfectly with Minn Kota trolling motors. In combination with a heading sensor (GPS compass), the sonar image always aligns exactly with the actual orientation of the transducer. This prevents disorientation during wind drift and ensures that you always place your cast at exactly the right angle toward the target fish.

Robust Construction and Flexible Mounting Options

Made from impact-resistant, saltwater-resistant specialty plastic, the Minn Kota LIVE Sonar housing withstands even hard impacts from debris or rocky shorelines. The system can be mounted either directly to the shaft of compatible Minn Kota trolling motors (such as Ultrex, Terrova, or the new QUEST models) or to a separate 360-degree swivel pole for manual lure tracking. All mounting brackets for motor and shaft operation are included in the delivery.

Minn Kota LIVE Sonar Technical Specifications at a Glance

Frequently Asked Questions (FAQ) About the Minn Kota LIVE Sonar

Which Sonar Models Is the Minn Kota LIVE Sonar Compatible With? The transducer system is fully compatible with the new Minn Kota X-Series (from 7 to 16 inches) and Minn Kota A-Series (from 13 to 19 inches). In addition, the transducer works seamlessly with established Humminbird APEX, Humminbird XPLORE, and Humminbird SOLIX G3 devices, provided that the latest software version is installed on the devices.

Does the Minn Kota LIVE Sonar Really Not Need an External Blackbox? Yes, that is one of the biggest advantages of this system. The Minn Kota LIVE Sonar is operated without an additional blackbox. You simply connect the transducer cable directly to the Ethernet port of your compatible display. This saves space on board, reduces power consumption, and greatly simplifies installation.

Can I Use the Minn Kota LIVE Sonar on a Manual Transducer Pole? Yes, absolutely. Many predator anglers prefer mounting it on a separate, manually rotatable transducer pole at the side of the boat, to orient the transducer toward the fish with millimeter precision, independently of the trolling motor. The included shaft mount fits all common transducer pole diameters.

What Is the Power Consumption of the Live Transducer? Since no separate blackbox with its own power supply needs to be operated, the Minn Kota LIVE Sonar operates very efficiently. The transducer typically draws less than 1 amp during operation, so you can work all day with compact LiFePO4 lithium batteries.
