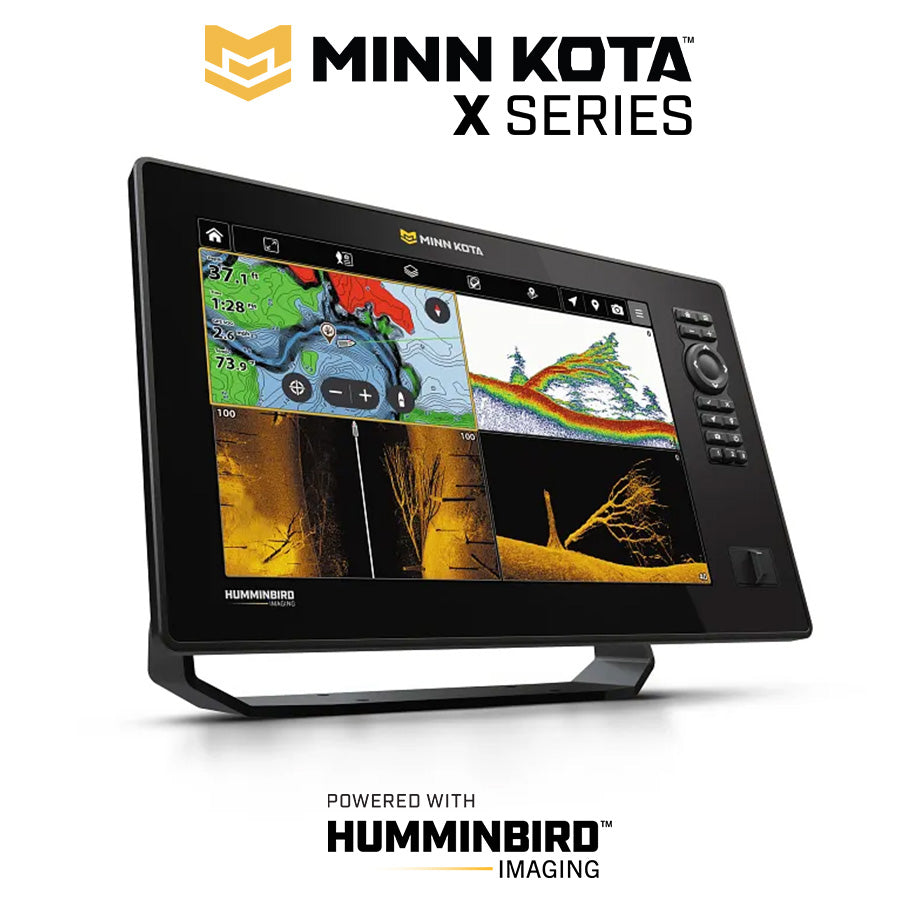

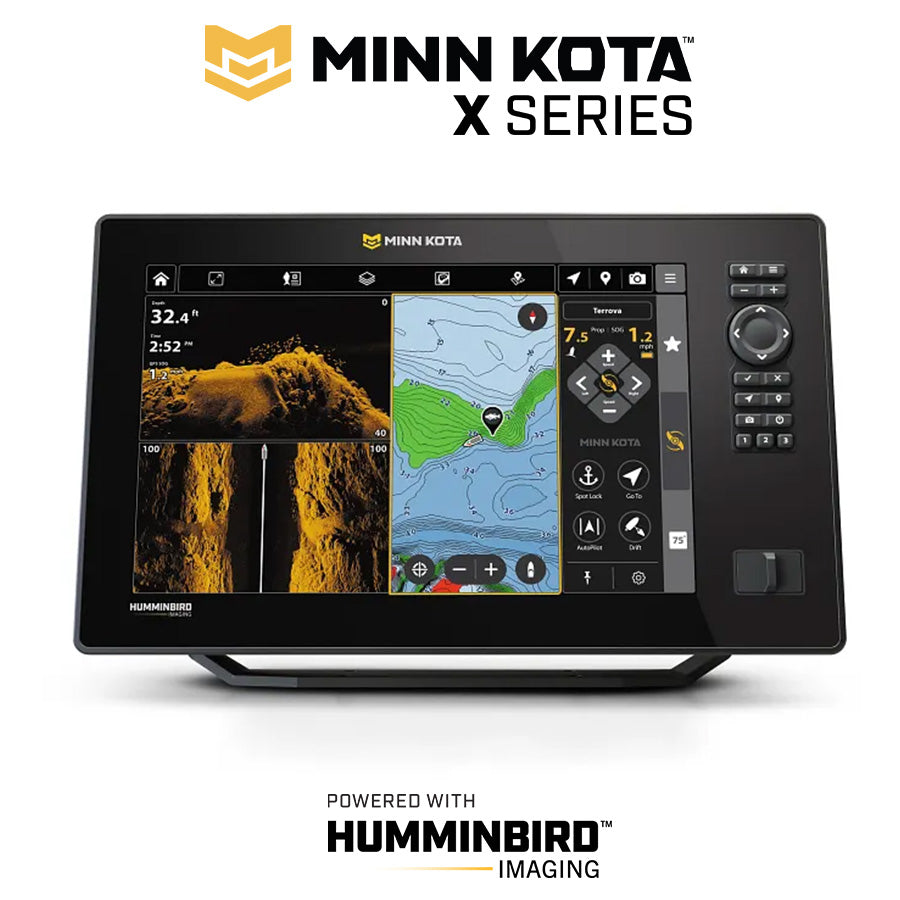

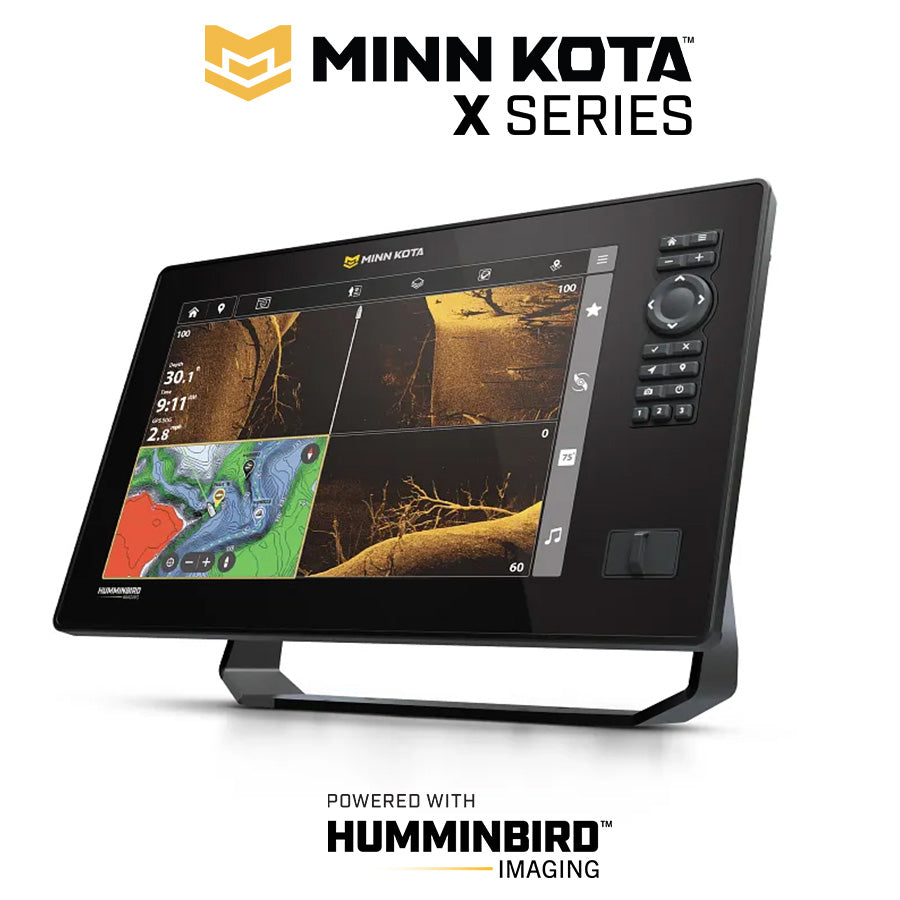

Minn Kota X12 CMSI Sonar & GPS Chartplotter (incl. Transducer) – The 12.1-inch Full HD Flagship with Humminbird MEGA Imaging+

The Minn Kota X12 CMSI is the absolute pinnacle of modern boat electronics for professional anglers, large-water guides and demanding boat owners. As the direct successor to the successful Humminbird XPLORE 12 CMSI, this 12.1-inch Full HD package including an all-in-one transducer delivers an unparalleled combination of forward-thinking Minn Kota boat control and the industry-leading sonar clarity of Humminbird Imaging.

With its native Full HD resolution of 1920 × 1080 pixels and an enormous display area of over 410 square centimeters, the X12 CMSI transforms every helm into a top-class marine command center. Whether you are using the full range of MEGA Side Imaging+ while trolling wide areas or exploring vast shallow-water zones, analyzing edges and bottom structures in Down Imaging, or tracking even the smallest contact with a tapping lure while vertical jigging: This display renders every detail with impressive clarity.

Why the Minn Kota X12 CMSI is the ultimate package for large boats

On large fishing boats, cabin cruisers or professional console boats, the 12-inch class offers a decisive comfort advantage. In the extremely robust housing with massive aluminum cooling fins, the same ultra-fast quad-core processor found in all devices in the flagship series is at work. Even if you are displaying MEGA Side Imaging+, Down Imaging, a detailed marine chart and an optional Live Sonar (Minn Kota LIVE or Humminbird MEGA Live 1 & 2) in a four-way split screen, the entire system runs absolutely smoothly and without noticeable delays.

Despite this computing power, the Minn Kota X12 CMSI operates extremely efficiently with a power draw of 3.1 amps for a 12-inch Full HD device. Thanks to the identical connector architecture of the Humminbird XPLORE and APEX series, as well as the included PC-13 power cable, the device can be integrated into existing boat installations in no time.

Includes a powerful all-in-one transducer for maximum detail resolution

The Minn Kota X12 CMSI package includes the full-featured combo transducer XM 14 HW CMSI T, including a solid metal transom mount and 6 meters of cable. This transducer makes full use of the integrated latest-generation Humminbird sonar technology and guarantees photorealistic underwater views.

On the 1,2 MHz MEGA frequency as well as the long-range 455 kHz frequency, the MEGA Side Imaging+ delivers seamless side coverage of up to 122 meters on each side (a total scan width of 244 meters). At the same time, the MEGA Down Imaging+ looks down to depths of 61 meters and renders sunken obstacles, trees, rock piles and predators lying close to the bottom with pin-sharp clarity. The integrated Dual Spectrum CHIRP 2D Sonar provides uncompromising target separation in open water and directly above the bottom with freely selectable beam widths (Wide and Narrow).

Brilliant 12.1-inch Full HD display with weather-resistant CrossTouch controls

The glare-free 24-bit color display impresses with enormous brightness and vivid color reproduction. Even in the blazing summer sun, with side glare and while wearing polarized sunglasses, every fine sonar echo remains clearly visible. Thanks to the proven CrossTouch control concept, the device adapts flexibly to any weather. In calm conditions, you can conveniently control waypoints, routes and window layouts using multitouch. As soon as stormy waves, continuous rain, snow or wet and slimy fingers make operation difficult, you can switch seamlessly to the robust buttons and precise rotary-push knob. Three programmable One-Boat Network hotkeys also allow you to directly access your most important views and control commands with a simple press of a button.

Fully integrated Wireless One-Boat Network and smart autopilots

The Minn Kota X12 CMSI turns your boat into a perfectly networked control center without annoying bundles of cables in the cockpit. Through the integrated Wireless One-Boat Network, the sonar connects completely wirelessly to current Minn Kota bow motors with dual-band GPS, as well as to all Advanced GPS motors from the 2024 model year onward via a free software update.

With the innovative Draw and Navigate™ function, you can draw your preferred route or the exact path of a drop-off directly onto the Full HD chart display with your finger, after which your paired Minn Kota bow motor will immediately follow this line fully automatically.

The Intelligent Depth Control™ safety function continuously monitors the water depth. If the water becomes shallower than your predefined safety value, the system warns you immediately and can automatically anchor the motor using Spot-Lock® or lower compatible shallow-water anchors such as Raptor and Talon, before the boat runs aground.

Smart waypoint handling, AutoChart Live and state-of-the-art media features

Organizing your hotspots becomes even more convenient on the 12,1-inch screen. You can circle multiple waypoints with a simple finger gesture, mark them as a group, or wirelessly synchronize them with your smartphone via the Minn Kota Fishing App. With the pre-installed AutoChart® Live, you can create your own depth charts in real time while driving, including detailed representations of bottom hardness and vegetation. The device offers 8 hours of internal storage for this purpose, which can be expanded indefinitely with an optional Zero-Line SD card.

An indispensable tool for demanding anglers is the integrated Media Tool with instant replay. If a large fish suddenly appears on the screen, you can save the sequence up to 30 seconds back in time as a video file with the press of a button. Alternatively, you can create pre-capture recordings up to two minutes long, to precisely capture bites and fights and share them directly with your contacts via the smartphone app.

Technical specifications of the Minn Kota X12 CMSI (incl. transducer) at a glance

Package contents of the Minn Kota X12 CMSI complete package

The Minn Kota X12 CMSI package includes everything you need to get started immediately. You receive the Minn Kota X12 sonar display (head unit), the all-in-one transducer (XM 14 HW CMSI T) with 6 meters of cable and a robust metal transom mount, the sturdy mounting bracket including knurled screws, the 1,82-meter long PC-13 power cable, a perfectly fitting silicone display cover, as well as all mounting hardware and documentation.

Frequently asked questions (FAQ) about the Minn Kota X12 CMSI (with transducer)

Why is it worth upgrading to the Minn Kota X12 CMSI with Full HD resolution? The 12,1-inch display not only offers around 44 percent more screen area than the 10-inch model, but also noticeably increases detail resolution with true Full HD (1920 × 1080 pixels). This makes edge structures, bottom hardness and fish arches appear more three-dimensional and sharper than ever in wide-area side imaging scans.

Can I connect a Live Sonar to the X12 CMSI in addition to the included transducer? Yes, it works perfectly. The included all-in-one transducer connects to the sonar port, while a Live transducer (such as the Minn Kota LIVE or Humminbird MEGA Live 1 & 2) connects directly to the Ethernet port. The sonar processes both signals simultaneously without an external additional box.

Which bow motors can be paired with the X12 CMSI without a network cable? All new Minn Kota bow motors with dual-band GPS (such as Terrova 2, PowerDrive 2, Ulterra 2, Ultrex 2 and QUEST 2 models) connect completely wirelessly to the X12 CMSI out of the box. Motors with Advanced GPS from the 2024 model year onward can be enabled for this wireless connection via a free software update.

What battery capacity should be used for the Minn Kota X12 CMSI? Due to the Full HD screen size and high processor performance, the device draws 3,1 amps. For a full 8- to 10-hour day of fishing, a 12V LiFePO4 battery with at least 40 Ah to 50 Ah is recommended. If you are running a Live transducer or additional network components on the same circuit, 80 Ah to 100 Ah is the perfect recommendation.
